Lead-Free Solder Wire Melting Temperature And Its Role

Lead-free solder wire melting temperature plays a prominent role in electrical and electronic applications. The soldering wire melts and solidifies on components to hold the components in their place. The melting point refers to the temperature at which a solid starts converting into liquid. Therefore, using a low-temperature soldering wire in elevated temperature conditions will result in melting of the soldering and the components will lose their place. Therefore, an optimum temperature selection plays a vital role in soldering.

This article sheds light on various types of lead-free solder wire melting temperatures and differences between lead-based and lead-free alloys. It also discusses the optimum temperature for lead-free alloys.

 Lead-Free Solder Wire Melting Temperature

The melting point temperature of any material is the temperature at which solids convert to liquid. It is an extremely important factor in real-world applications. For instance, only the materials that can withstand high temperatures find use in furnace applications. Using materials having a low melting point in higher temperature applications will result in melting of the material.  Therefore, an optimum temperature should be selected based on application.

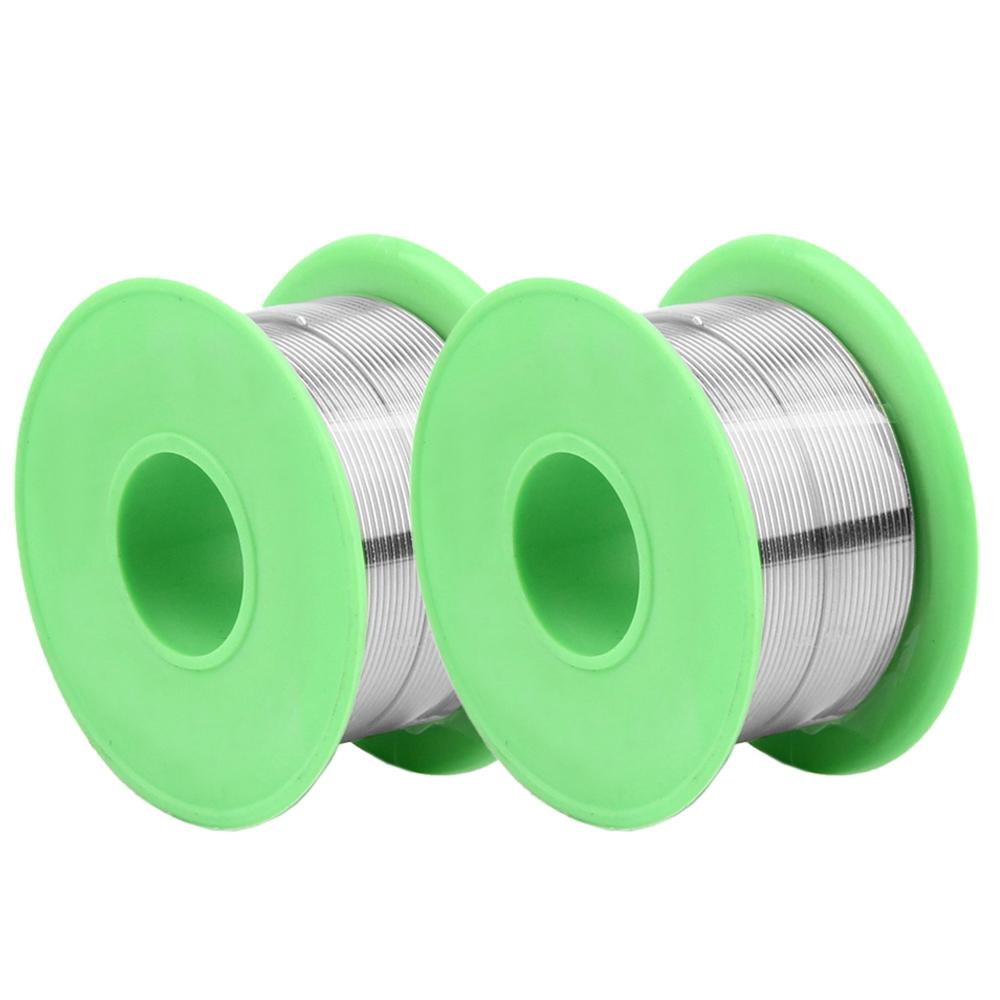

Lead-free solder wires find extensive use in electronics and electrical applications to join components together. The wire melts join two components and solidify. Therefore, lead-free solder wire melting temperature is a crucial parameter in soldering applications. The soldering wires consist of several alloys and most of them include lead while others are lead-free. Since it joins two components together, the lead-free solder wire melting temperatures must be optimized according to the application.

lead-free solder wire melting temperature varies from 90 degrees Celsius to 400 degrees celsius depending upon the application. Therefore, in high-temperature applications, high-temperature soldering wires find use as they can withstand extreme conditions.

Importance Of Lead-Free Soldering Wire Melting Temperature In Real-World Applications

The lead-free solder wire melting temperature is an extremely important parameter. It explains the optimum temperature that is most suitable for the application. For instance, if an electronic board needs to be installed in a device that finds use in a high-temperature application, then a high lead-free solder wire melting temperature is a suitable option. Therefore, it depends on the application of the device that what temperature will be the most appropriate option.

For instance, the solder wires consisting of metals other than lead melts at up to 300 degrees celsius. On the other hand, most lead solder wires can withstand up to 200 and in some cases even 150 degrees celsius is bearable. Therefore, in high-temperature applications, solder wires with high melting temperatures are suitable.

In most real-world applications, low temperature is preferable. For instance, most electronic components cannot bear high temperature and thus melts. Therefore, soldering wires with low melting temperatures are suitable.

Types Of Lead-Free Solder Wire Melting Temperature

The lead-free solder wire melting temperature divides itself among two categories;

Eutectic Vs Non-Eutectic Alloy

Eutectic alloys melt at a specified temperature and solidify upon cooling. This ability of eutectic alloys makes them dominant in various applications. Non-eutectic alloys work based on the melting range. It does not melt immediately. Once you place the soldering iron, it starts melting and keeps melting until it converts into liquid completely. After that, it solidifies. Eutectic allows fast and quick operation as the wires solidify and cool instantly at a single temperature. However, it is not a lasting technique as at slightly higher temperatures the soldering will meltdown.

Lead-Based Vs Lead-Free Alloys

Lead-based allows becoming softer at higher temperatures and loses their ability to withstand the temperature. The melting temperature is high and therefore they are most suitable for electronic and electrical applications. These allies remain in their dome form at elevated temperatures and do not melt. Therefore, the optimum lead-free soldering temperature lies between 90 and 400 degrees celsius and is ideal for most soldering applications.

The soldering melting temperature plays a prominent role in electronic applications. lead-free solder wire melting temperature is suitable for high-temperature applications as the manufacturer can perform soldering continuously without waiting for each dome to solidify. For thermally sensitive materials it is crucial to use low-temperature soldering wires otherwise it will damage the components.

Finding the Optimal Melting Temperature

lead-free solder wire melting temperature is an important parameter as discussed. Therefore the most optimum temperature for the applications needs serious consideration. Using a low melting point soldering wire in a high-temperature environment will melt the alloy. Similarly using a high melting temperature alloy in a low-temperature environment will melt the components. Therefore, finding the optimum melting temperature is a crucial step. Before discussing how to select the optimum temperature, let us discuss the differences between the lead and lead-free solder wires.

Solder Wire Melting Temperature

The most prominent difference between both the lead and lead-free solder wires depends upon the temperature. the lead-free solder wire melting temperature varies from 200 degrees Celsius to 400 degrees Celsius making it ideal for devices in high-temperature applications. on the contrary, lead-based solder wires have melting points ranging between 180 degrees Celsius to 350 degrees celsius. The solder wires find extensive use in joining components in PCB boards. Therefore, the components must be able to withstand high temperatures depending upon the application. Using a high-temperature soldering technique on sensitive materials will melt and damage them. Therefore, one must analyze the applications of the components before performing soldering.

Solidifying Properties

The lead-free solder wire melting temperature is high and therefore it takes a longer time to solidify. However, it does not spread on the board and solidifies in the form of a dome that joins and holds two components in their place. On the contrary, lead-based soldering wires take a longer time to solidify and can make the processing time-consuming. However, the exact solidification depends on the temperature of the molten wire.

Soldering Iron

The soldering iron is the device that melts the wires and adheres two components together upon solidifying. Therefore, the soldering iron plays a prominent role in melting the wires and is available with different specifications according to the application. The lead-free soldering iron needs to have a high wattage. The soldering iron has a tip similar to a pencil having a sharp nib to melt the wires. Therefore, the tip design and size of the iron should be adequate. For an effective heat transfer, soldering iron plays a prominent role as the time and melting temperature depend on the electric capacity of iron.

Durability

a lead-free soldering iron is not durable and long-lasting. Since it can melt wires having a very high melting point, it sometimes fails to bear the high temperature. Moreover, due to contact with oxides, the tip wears out. Therefore, a separate wax comes along with the soldering iron to cool it at intervals and also helps cleaning the tip. This practice prevents the tip from corrosion and damage due to high-wattage.

Conclusion

To sum up, the optimum soldering temperature depends on the application. A lead-free temperature is a suitable option for high-temperature applications as it can withstand elevated temperatures because of the high melting point. Besides the high melting point, it also has appropriate wetting characteristics. Therefore, you must analyze the application before performing soldering.
